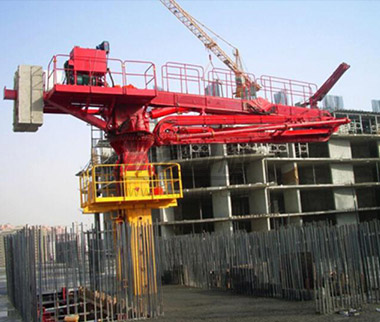

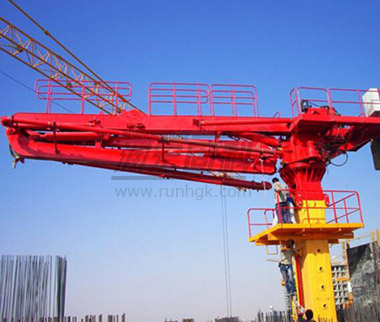

HGY Hydraulic Placing Boom-32m
| HGY Hydraulic Placing Boom-32m Performance Comprehensive Description | ||
| Type | HGY32 | |
| Concrete Pipe Specification (Outer Diameter*Thickness)（mm*mm） | Φ133×4 | |
| Concrete Rubber Hose Specification(Inner Diameter*Length)（"*mm） | 5“×3000 | |
| Placing Radius（m） | 32 | |
| Stand-alone Height(To Hinge Point)（m） | 23.17 | |
| 4-Sections Hydraulic Folding | 1st section | 8.7m |
| 2nd section | 7.8m | |
| 3rd section | 7.8m | |
| 4th section | 7.7m | |
| Boom Rotation Angle | 1st section | -4°～+90° |
| 2nd section | 0°～180° | |
| 3rd section | 0°～180° | |
| 4th section | 0°～215° | |
| Roation Degree（°） | 365° | |
| Power（kW） | 30 | |
| Hydraulic System Pressure（MPa） | 30 | |
| The Hydraulic Oil Grade | 46 | |
| Min Climbing Frame Spacing(m) | Climbing | 3 |
| Placing | 6 | |
| Standby | ||
| Operation Mode | Wired Remote Control / Wireless Remote Control | |
| Power | 380V/50Hz | |
| The Wind Speed | Placing | ≤60km/h |
| Climbing Speed | ≤28km/h | |
| Working Temperature | 0～48 ℃ | |
