DN125×3000mm QZ Type

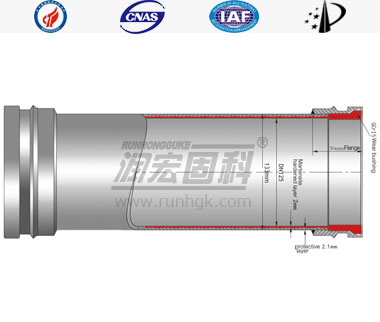

| Concrete boom pump wear resistant pipe performance comprehensive description | |||||||||||||||
| Name |
Specifi
cation
|
Pipe body description | Flange | Weight |
Manufac
ture process
|
Geometric dimension tolerance | Pressure | ||||||||
| Outer diameter |
Thick
ness
|
Struc
ture
|
Material | Structure | Height | ||||||||||
| Concrete boom pump wear resistant pipe QZ type |
DN125×
3000
mm
|
133.2mm | 4.1mm | Single Wall | 45Mn2 |
Compound Structure/ "一"type GCr15+
ST52
|
45mm | 40.6kg | Supersonic frequency quenched (15KHz) | 3000±1mm | 220bar | ||||
Weld tensile strength:＞960bar
Surface coating:Common Air-dry paint
Lifetime(Conventional environment):610 Working hours(The average data from the survey of 100 customers in 26 countries)

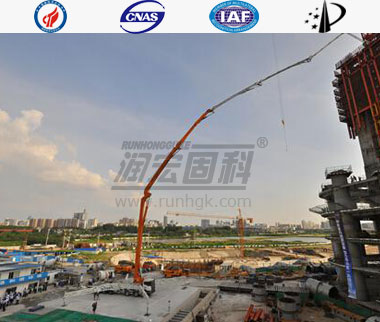

Application:Conceret boom pump
